Cnc Oscillating Knife Cutting Machine For Car Mat Cutting 1625 Working Size

cnc oscillating knife cutting machine for car mat cutting 1625 working size

Application

Digital knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam board,rubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites

Machine Parameter

Features Of CNC Automatic Gasket Cutting Machine With Pneumatic Knife Cutter

• Comes with an intelligent cutting head, tools can be changed according to requirements and all kinds of gaskets can be cut effectively with strong practicability.

• All electrical components and pneumatic components use well-known brand products to ensure the stability and reliability of the whole machine for long-term use.

• The equipment has high cutting precision and extremely small error, which meets the strict requirements of gasket production for precision.

• Pneumatic knife cutting, the cutting surface is smooth and round, no secondary processing is required, and it can be used directly, reducing the production process and improving production efficiency.

• The cutting accuracy of this machine is 0.01mm, the reset accuracy is 0.01mm, the product error is ±0.03mm, and the cutting surface smoothness can be reached, which can greatly save the waste material of multi-cavity.

• Vacuum adsorption of the cut products, so that the finished products have higher precision.

• Automatic feeding device is optional, which can realize continuous feeding, realize long-span cutting, unlimited theoretical cutting length, improve production efficiency, and have a high degree of automation.

• According to the customer's product requirements, various knife can be choose.

Applications Of CNC Automatic Gasket Cutting Machine With Pneumatic Knife Cutter

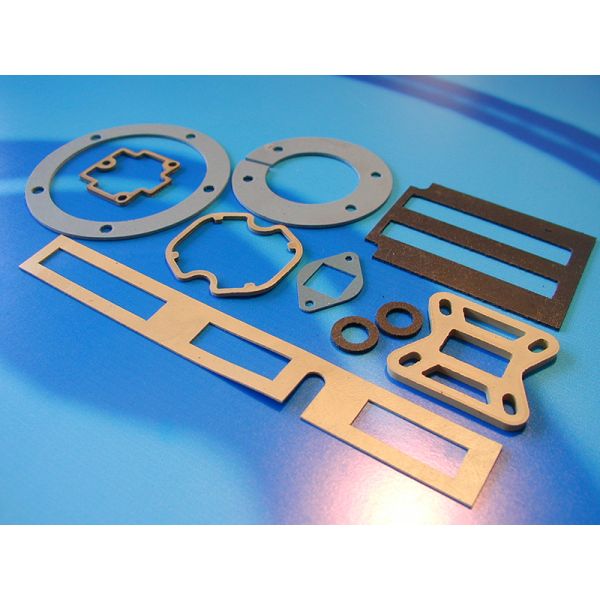

CNC gasket cutters can cut a variety of gaskets, including cork rubber gasket, non asbestos gasket, rubber gasket, graphite seal gasket, reinforced gasket without air pollution, no burnt edge, it can also cut fabric, leather, cardboard, plastic, paper, rubber, sponge and foam.

CNC gasket cutting machines are widely used in packaging protection, advertising display, terminal insulation, model/mock up making, puzzle and pattern cutting.

CNC Automatic Gasket Cutting Projects & Ideas

Different CNC Knife Cutters To Cut Different Gasket Materials For Option

CNC Gasket Cutting Vs. Die Cutting And Laser Cutting

Traditional gasket production relies on die cutting or laser cutting, but both methods carry limitations that a CNC pneumatic knife cutter eliminates. Die cutting requires a custom steel-rule die for every gasket shape, with tooling costs of $500 to $3,000 per die and lead times measured in days to weeks. Any design revision means ordering a new die, making die cutting impractical for short runs, prototyping, or shops handling frequent engineering changes.

Laser cutting avoids the tooling cost but introduces heat to the material. On rubber, cork, and graphite gasket sheets, the thermal energy creates a heat-affected zone that can char edges, release fumes, and compromise the seal integrity of the finished gasket. A CNC oscillating knife delivers a cold mechanical cut with no burnt edges, no off-gassing, and tolerances within ±0.1 mm. Design files import directly from CAD as DXF or DWG, and intelligent nesting software maximizes material yield across the sheet. For shops that also process textiles and soft goods alongside gaskets, the full range of CNC Digital Knife Cutting Machines offers multi-tool heads that switch between oscillating blades, drag knives, and marking pens within the same job.

Gasket Materials And Matching The Right Blade Configuration

Gasket sheet stock ranges from soft silicone and cork rubber to dense non-asbestos composites and metal-reinforced graphite, and each material demands a specific blade geometry and cutting strategy. Standard oscillating blades handle soft rubber, foam, and cork gaskets up to 25 mm thick at high feed rates. For reinforced sheets and fiber-filled composites above 25 mm, a high-power pneumatic oscillating head provides the downward force and stroke frequency to cut cleanly without delaminating the material layers.

Kiss-cut mode is essential for gasket applications that require a peel-and-stick backing layer to remain intact. The blade penetrates the gasket material but stops precisely at the adhesive liner, allowing operators to peel finished gaskets directly from the sheet without manual trimming. Shops producing multiple gasket types benefit from quick-change tool holders that swap between blade profiles in seconds. A CNC Tangential Oscillating Knife Cutting Machine adds active blade rotation for sharp corners and intricate bolt-hole patterns, while a Digital Flatbed Cutting Plotter suits high-volume shops needing conveyor feeding for continuous roll-to-sheet gasket production. For applications that extend beyond gaskets into apparel and upholstery, the Digital Fabric Cutting Machine handles multi-layer textile stacks with the same precision platform.
